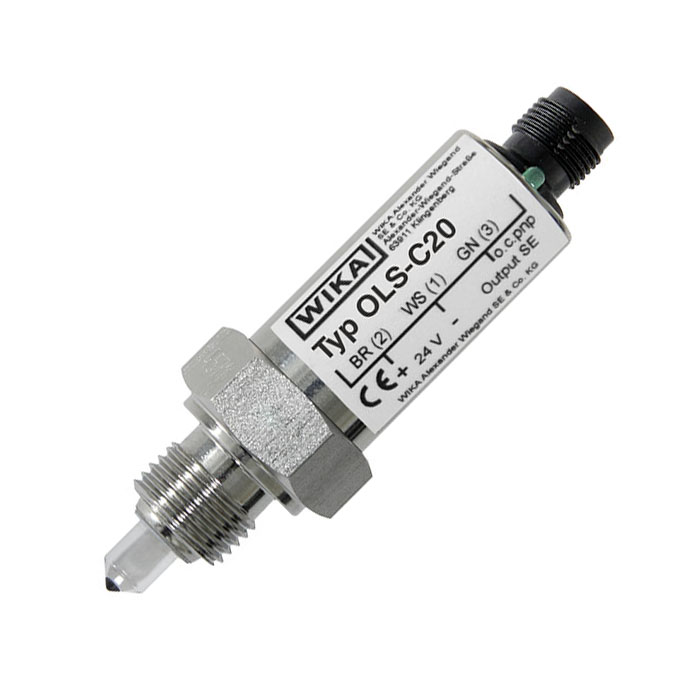

Model OLS-C20

Optoelectronic level switch

Compact design, high-pressure version

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Level measurement for liquid media
  • Level control and monitoring of distinct filling levels
  • Machine building
  • Wastewater and environmental engineering

Special features

  • Compact design, no moving components
  • Temperature ranges from -30 … +135 °C
  • Versions for pressure ranges from vacuum to 50 bar
  • Mounting position as required
  • Visual indication of the switching status


The model OLS-C20 optoelectronic level switches are used for the detection of limit levels in liquids. This is widely independent of physical characteristics such as refractive index, colour, density, dielectric constant and conductivity. Measurement is also done in small volumes.

The switches consist of an infrared LED and a phototransistor. The light of the LED is directed into a prism. So long as the sensor tip of the prism is in the gas phase,  the light is reflected within the prism to the receiver. When the liquid in the vessel rises and wets approximately 2/3 of the glass tip, the infrared lightbeam into the liquid is interrupted and only a small portion reaches the receiver.

The O. C. pnp transistor output may be connected directly to the input of a control system or energise an external relay. The output is short-circuit proof and also current, voltage and power limited.

The switching status can be read directly on the sensor (green LED).
