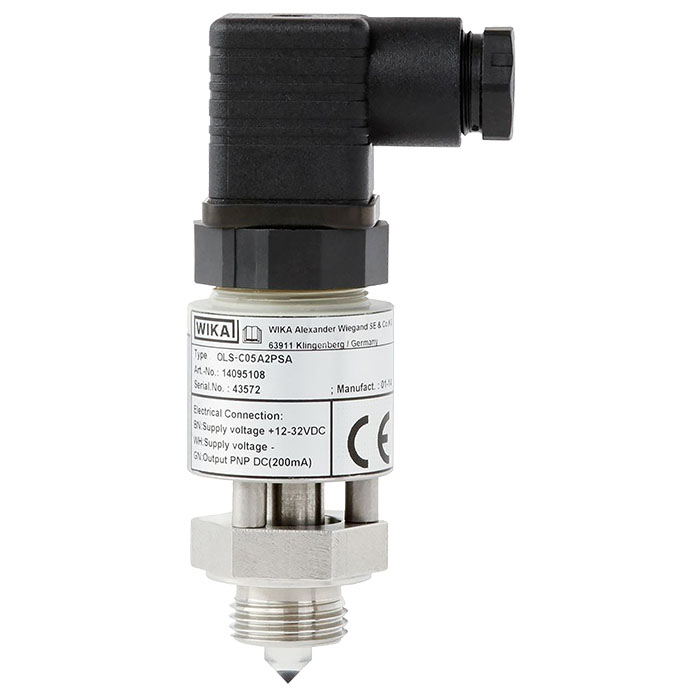

Model OLS-C05

Optoelectronic level switch

High-temperature version

Selected documents
Sales contact Questions? Find a contact in your vicinity.


    • Machine tools
    • Hydraulics
    • Plant construction and machine building
    • Water technology
    • For liquids such as oils, water, distilled water, aqueous media

Special features

    • Use at temperatures of up to +170 °C [+338 °F]
    • Mounting position as required
    • Accuracy ±2 mm
    • Choice of electrical connections: PUR, PVC cable, circular connector M12 x 1 or angular connector EN 175301-803 A


The model OLS-C05 optoelectronic level switch is used for monitoring the level of liquids. The optoelectronic sensor consists of an infrared LED and a light receptor.

The light from the LED is directed at a prism which forms the tip of the sensor. So long as the tip is not immersed in liquid, the light is reflected within the prism to the receiver.

When the liquid rises within the vessel and surrounds the tip, the light beam is refracted by the liquid, so that the receiver is no longer or only weakly reached by the light and reacts to this change by triggering a switching operation.

For versions with trimmer, the switching status can be read directly on the sensor (internal red LED).

The model OLS-C05 level switch is designed for use with liquids at high temperatures of up to +170 °C [+338 °F].

Optoelectronic level switch
  • Optoelectronic level switchOptoelectronic level switch
