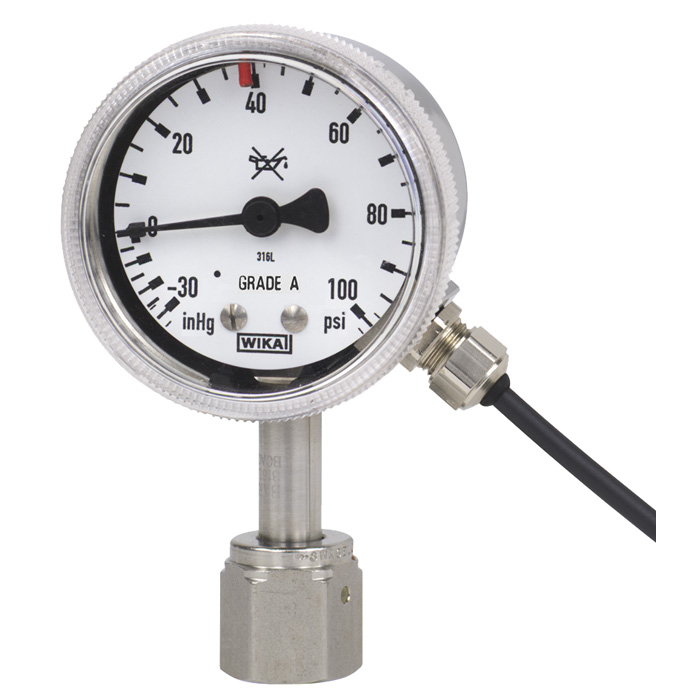

UHP, stainless steel version, with reed contact
Nominal size2"
Accuracy classGrade A to ASME B40.1
Scale ranges0 ... 4 to 0 ... 400 bar (0 ... 60 to 0 ... 6000 psi)or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitationSteady: 3/4 x full scale valueShort time: full scale value
Operating temperatureAmbient: -20 ... +60 °CMedium: +100 °C maximum
Temperature effectWhen the temperature of the measuring system deviates from the reference temperature (+20 °C):max. ±0.4 %/10 K of full scale value
Ingress protectionIP 54 per EN 60529 / lEC 529
Process connectionStainless steel 316L, lower mount (LM) or back mount,VCR® compatible threaded connection optionally:
Male thread ¼ NPT
VCR® is a registered trademark of Swagelok
Model 230.15
