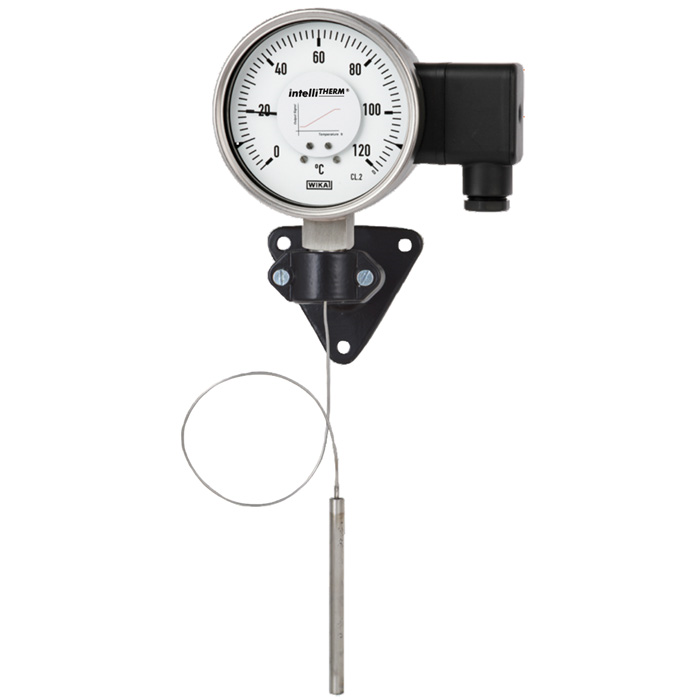

Stainless steel version, with/without remote capillary
Wherever the process temperature has to be indicated on-site and, at the same time, a signal transmission to the central control or remote centre is desired, the model TGT70 intelliTHERM® can be used.
Through the combination of a mechanical measuring system and electronic signal processing, the process temperature can be read reliably, even if the voltage supply is lost.
The built-in Bourdon tube system generates a rotational pointer movement that is proportional to the temperature. An electronic angle encoder (non-contact, and therefore completely free from wear and friction) determines the position of the instrument pointer. From this, the electrical output signal, proportional to the temperature, is produced. The basis of the intelliTHERM® comes from instrument variants derived from the the model 70 expansion thermometers (see data sheet TM 81.01).
Model TGT73
Stainless steel version
Model 70
Model 70-8xx
Model SC15
Temperature limiter
Nominal size 100
