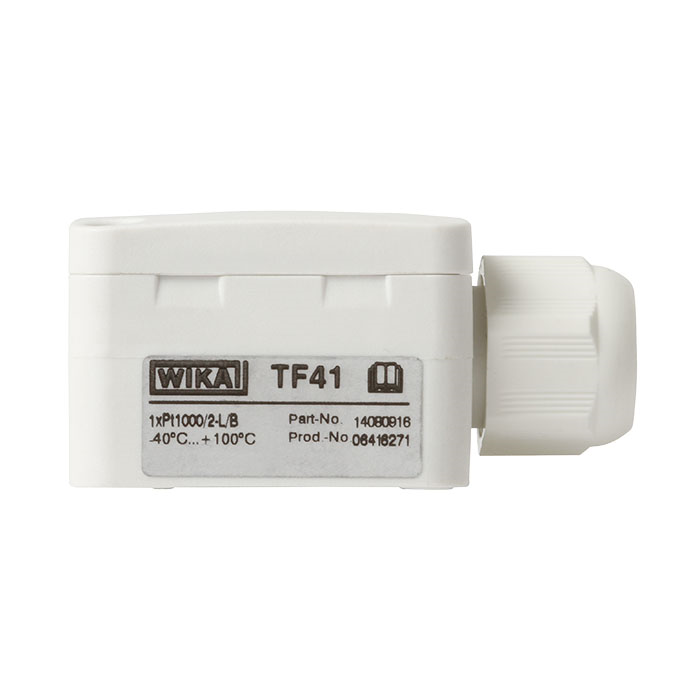

Model TF41

Outdoor thermometer

Selected documents
Sales contact Questions? Find a contact in your vicinity.

Applications

  • Heat pumps
  • Combined heat and power plants
  • Heating, ventilation and air-conditioning
  • Refrigeration technology

Special features

    • Smallest case design
    • Protected against dust and water jets, IP65
    • UV-resistant
    • Clip-on sun protector
    • Temperature ranges from -40 … +100 °C

Description

Model TF41 outdoor thermometers are used for temperature measurement in external areas as well as in cold rooms and production and storage facilities. The extremely small case even enables mounting in locations where there is very little space available.

The model TF41 outdoor thermometers are delivered as standard with the measuring element integrated within the case. For faster temperature measurement, the TF41 can alternatively be delivered with an external probe sleeve.

To prevent erroneous measurements through strong radiation from sunlight, we offer a clip-on sun cover as an accessory. By selecting the appropriate measuring elements, the TF41 models are compatible with all commonly used control systems.

Standard version

Measuring element integrated within the housing

  • Standard versionWith sensor sleeveExternal sensor sleeve and sun protector
