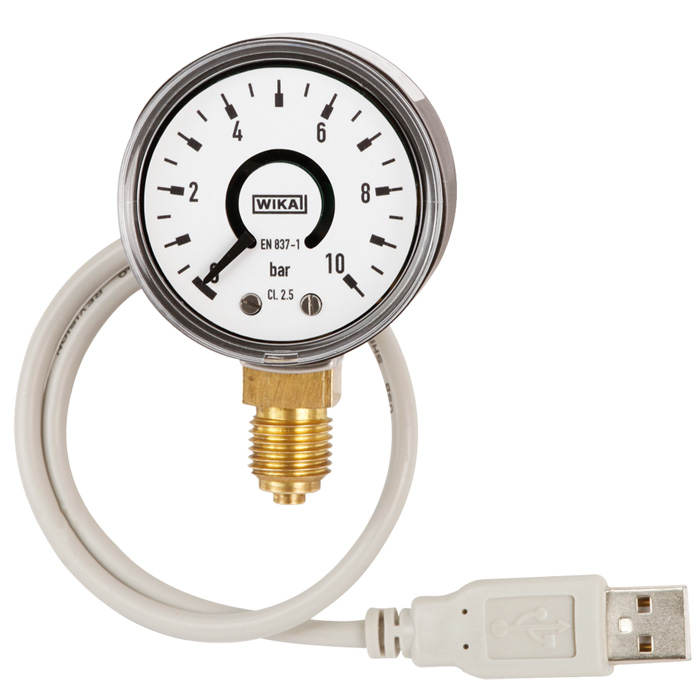

Plastic case, with USB interface
Applications
Special features
Description
DesignEN 837-1
Nominal size in mm50
Accuracy class2.5
Scale ranges0 ... 1.6 to 0 ... 400 baror all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitationSteady: 3/4 x full scale valueFluctuating: 2/3 x full scale valueShort time: Full scale value
Permissible temperatureAmbient: -20 … +60 °CMedium: +60 °C maximum
Temperature effectWhen the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
Process connectionCopper alloy, lower mount (LM)G 1/4 B (male), 14 mm flats
Pressure elementCopper alloy, C-type
MovementCopper alloy
DialPlastic, white, black lettering
PointerPlastic, black
