For highest pressure applications to 3,000 bar

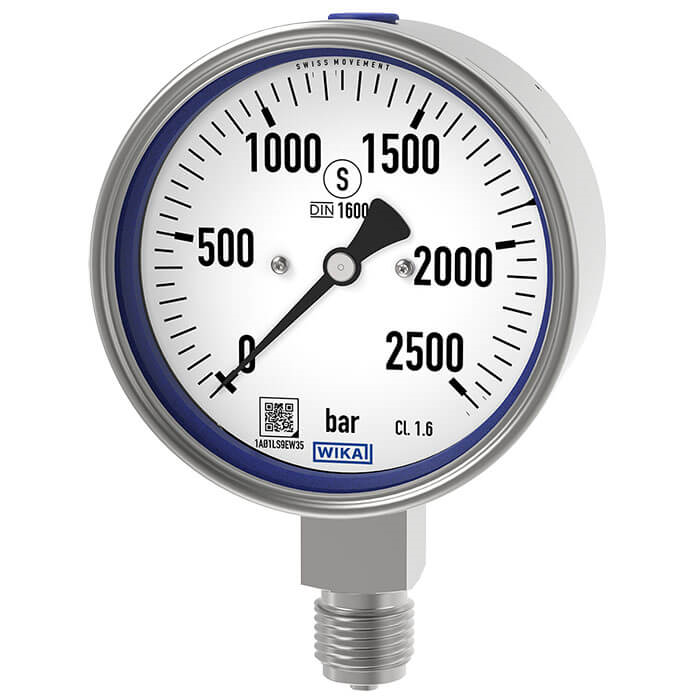

The model PG23HP-S Bourdon tube pressure gauge has been designed specifically for high-pressure applications up to 3,000 bar.
Typical measuring points for this pressure gauge can be found in water jet cutting, high-pressure cleaning and test bench construction.
WIKA manufactures and qualifies the model PG23HP-S in accordance with the requirements of the new DIN 16001 high-pressure standard in the "S3" safety version. The safety version is made up of laminated safety glass, a solid baffle wall between measuring system and dial and a blow-out back. In the event of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the instrument.
The proven, all-welded construction ensures a long service life and permanent sealing.
The resistance to shock and vibration can be increased by the optional case filling.
The QR code on the dial allows instrument-specific information such as the serial number, the order number, certificates and other product data to be retrieved from the internet easily and in the long term.
Model PG23HP-P
For highest pressure applications to 6,000 bar, heavy-duty version
