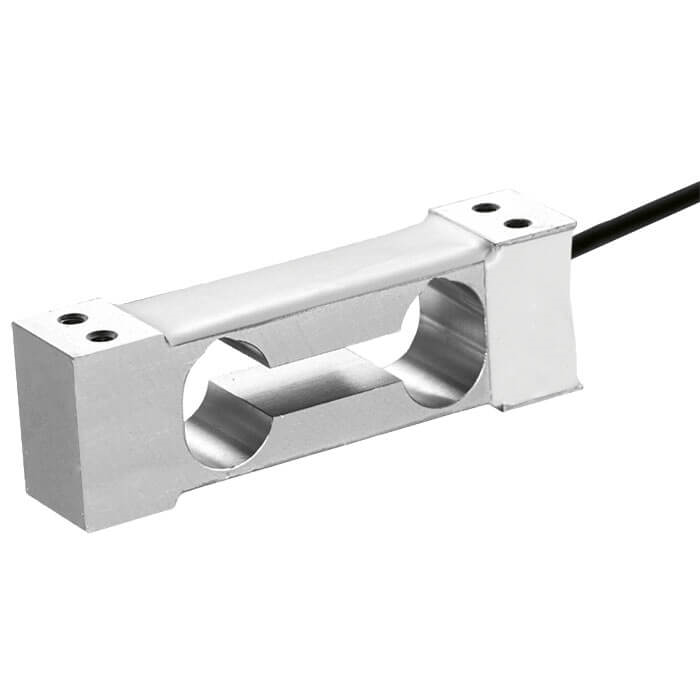

Model F4802

Single point load cell

Up to 10 kg

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Electronic precision scales
  • Industrial weighing systems
  • Medical engineering

Special features

  • Measuring ranges 0 … 0.3 kg up to 0 ... 10 kg
  • Made of aluminum alloy
  • High accuracy
  • Insensitive to side and corner loads
  • Simple structure, easy to install


Single point load cells are especially designed to be used in platform trucks. They can be mounted under the platform without any further construction or calibration processes.

The load cell is easy to operate due to its simple way of the force direction. It applied vertically to the load cell axis.

The single point load cells are to be mounted on an even surface. The permitted load direction is marked with an arrow symbol.
