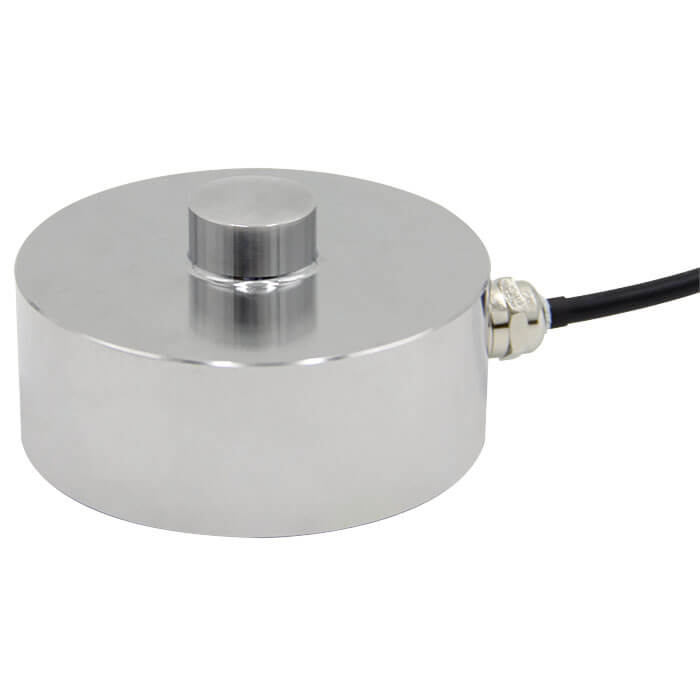

Model F1811

Compression force transducer

Standard version up to 300 kN

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Measuring and control systems
  • Production lines
  • Presses
  • Platform scales for trucks

Special features

  • Measuring ranges 0 ... 2.5 kN to 0... 300 kN
  • Relative linearity error 0.1 % Fnom
  • Stainless steel version, completely welded
  • Low installation height, easy to install
  • IP67


Due to its compact design, the model F1811 force transducer is used very often in industrial applications such as production lines and control units. The spherical calotte (spherical load application button) allows for a very simple force introduction.

Compression force transducers are used for the determination of compression forces in a wide variety of applications and are suitable for static and dynamic measuring requirements.

To avoid overloading, it is advantageous to connect the force transducer electrically during assembly and to monitor the measured value.

The measuring force must be introduced through the centre and free of transverse force. When assembling the force transducer, care should be taken that the support surface is flat.
