Hygienic design

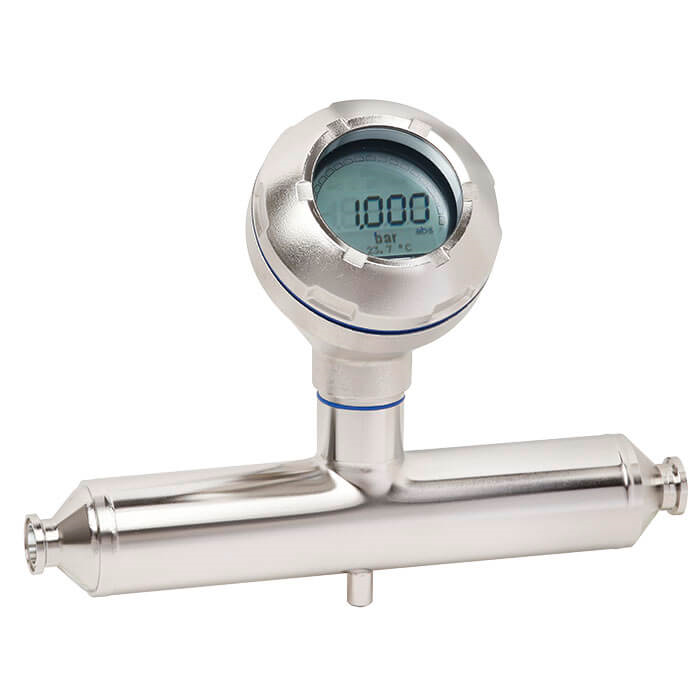

The certified hygienic design of the model DMSU22SA in-line process transmitter fulfils the constantly growing requirements for process monitoring on plant for sanitary applications. Measurement is done by means of a deformation of the inner sensor tube of the double-tube system due to the applied pressure. This deformation produces a signal change, which the transmitter converts into the measuring signal. This version combines the demands for digitalisation and process reliability. Versions with HART® protocol are able to transmit not only the measuring signal, but also the status of the continuous sensor monitoring of the double-tube system to the process control system as required.
The patented sensor tube solution of the in-line process transmitter, in combination with the sensor monitoring within the double-tube system, provides optimum protection against process and environmental contamination.
The in-line process transmitter can be supplied with all common process connections for sanitary applications and fulfils the applicable standards for them, e.g. EHEDG, 3-A and ASME BPE.
This product, WIKA model DMSU22SA, includes a patented WIKA development (e.g. US2021404898A1).
Model DMSU21SA
Model DMS-FP
For sanitary applications
Hygienic Design In-line
