Model A48

Bimetallic thermometer

For air-conditioning and refrigeration systems

Selected documents
Sales contact Questions? Find a contact in your vicinity.

Applications of the bimetallic thermometer

  • Air-conditioning and refrigeration systems
  • Ventilation systems

Special features of the bimetallic thermometer

  • Accuracy class 2
  • Nominal size 63, 80, 100 and 160
  • Scale ranges from -30 ... +50 °C to 0 ... 120 °C

Description of the bimetallic thermometer

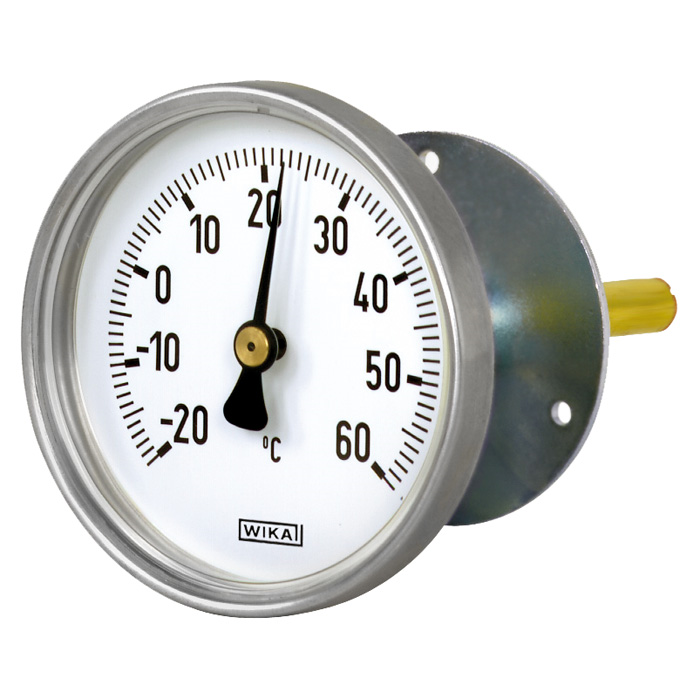

The model A48 bimetal thermometer has been specifically developed for use in air-conditioning and refrigeration technology for measuring the temperature in air ducts.

Due to the flexibly adjustable flange, the thermometer can be adapted to all standard wall thicknesses of pipe insulations.
