For flange connection, cell-type
Description
Process connectionFor flanges following EN 1092-1 / ASME B 16.5Nominal sizes see drawing and tablesSealing faces, Form B1 or ASME RF 125 ... 250 AA
Pressure ratingPN 6 ... 400 or class 150 ... 2500
Pressure rangesPreferably assembled on pressure gauges NS 63, 100, 160 or pressure transmitters, measuring ranges 0 ... 0.6 to 0 ... 400 bar
Body and material of wetted partsStainless steel (AISI 316L)
Measuring instrument connectionPressure gauge or transmitter directly welded, process pressure transmitter with threaded adapter
System fill fluidKN2, Silicone oil
Process connection
Measuring instrument connection
Material of wetted parts
Capillary
Model 910.17
For measuring instruments and instrumentation accessories
Model 910.16
Model 910.21
For mounting to zone 0 (EPL Ga)
Model 990.27
With flush diaphragm
Model 981.27
For flange connection, flange-type
Model 990.26
With internal diaphragm
Model 990.28

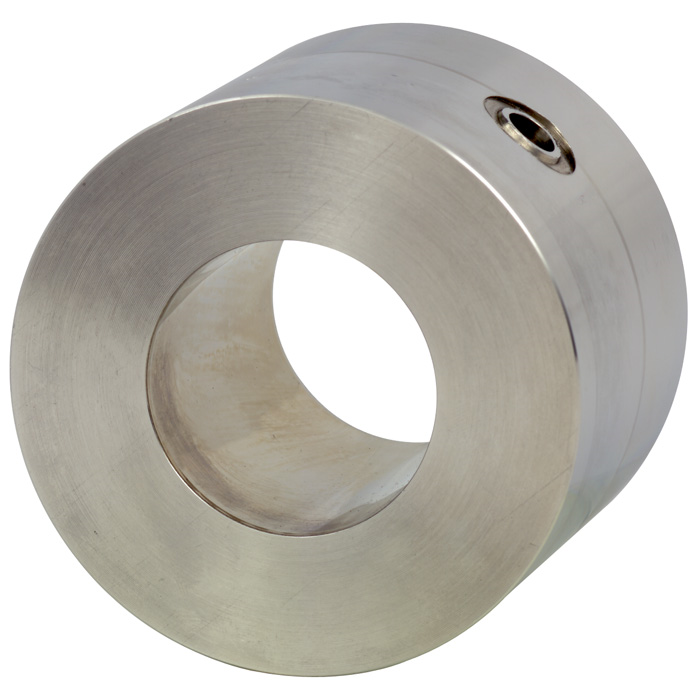

Cell-Type (Sandwich) Seals
