Model 910.13

Overpressure Protector, Adjustable

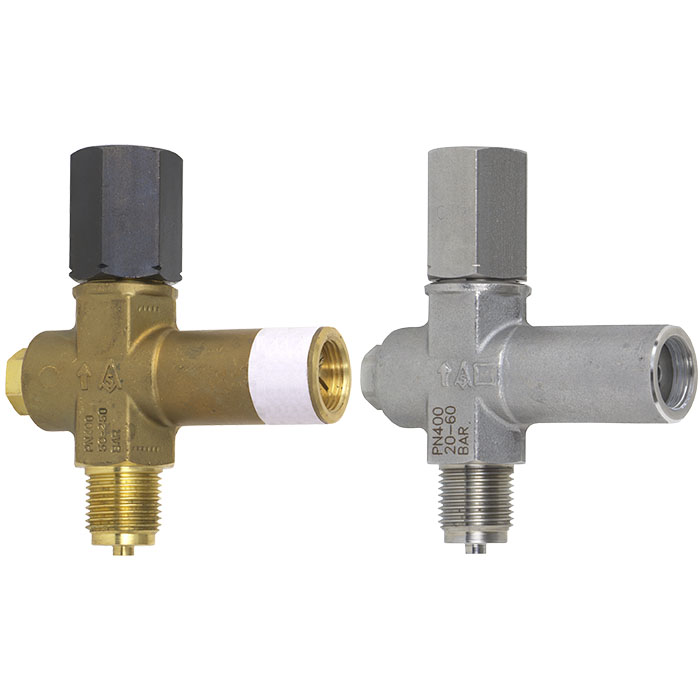

Brass or Stainless Steel

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Adjustable overpressure protectors are intended to protect pressure gauges against the effect of pressures exceeding their maximum pressure rating
  • Stainless steel version for corrosive pressure media, even in corrosive ambience
  • Process industry: mechanical engineering and plant construction, chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology

Special Features

  • Design with pressure connection form A resp. form B
  • 7 different setting ranges selectable
  • Nominal pressure up to 600 bar
  • Overpressure safe up to 1,000 bar
  • Vacuum safe


The overpressure protector consists of a spring loaded piston valve. Under normal pressure conditions the spring holds the valve open. When the system pressure exceeds the set pressure, the force exerted by the spring is overcome and the valve closes. The valve will remain closed until the system pressure drops approx. 25 % below the closing pressure, where-upon the force of the spring will open the valve.
Factory setting see data sheet.

To change setting:
Turn adjusting screw clockwise ⇒ closing pressure higher
(or anticlockwise ⇒ closing pressure lower)

Overpressure protectors must not be used as control devices!

Settings with factory mounting
The protector is set to 1.1 x maximum scale value when ordered together with a pressure gauge.

Standard features


Pressure connection
Form A: G ½ male / female
Form B: ½ NPT male / female
(see dimensions page 2)

Valve body (wetted part)
Material brass (with union nut from steel, rust-protected) or stainless steel (with union nut from stainless steel 1.4571) selectable.


Operating Temperature
+80 °C maximum
