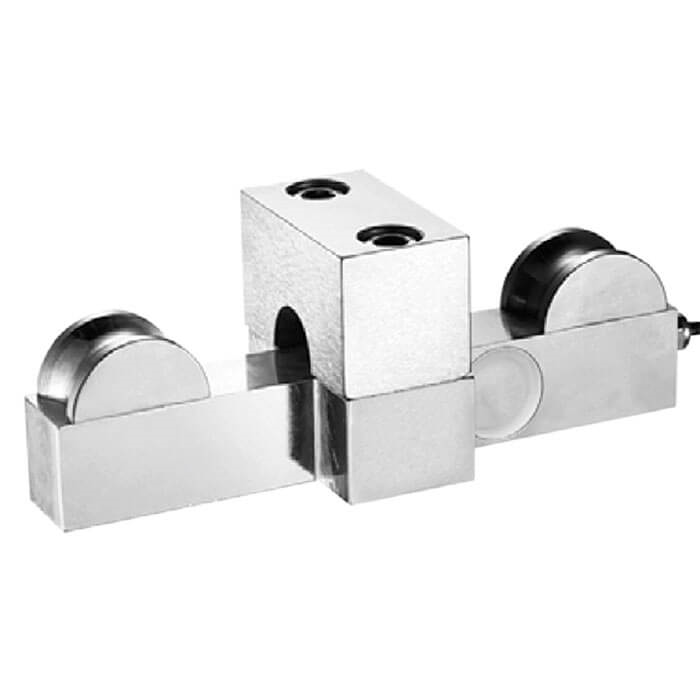

Model F9204

Wire rope force transducer up to 40 t

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Overload protection of cranes or storage and retrieval devices
  • Overload protection and measurement tension of wire ropes

Special features

  • Measuring ranges 0 … 1 t up to 0 ...4 0 t
  • Integrated amplifier, output 4 … 20 mA, 2-wire
  • Simple mounting (without opening rope), suitable for retrofits
  • Material alloyed steel
  • Protection class IP66


The wire rope force transducer have been specially designed to measure the load on existing steel cables. This force transducer is made of alloyed steel.

The wire rope force transducer monitors cost-effectively cable forces. This requires a cable anchor point, because the measurement is taken at the stationary rope. For this purpose, the transducer is clamped to the assembled cable in a few steps.

Wire rope force transducer up to 40 t
  • Wire rope force transducer up to 40 t
