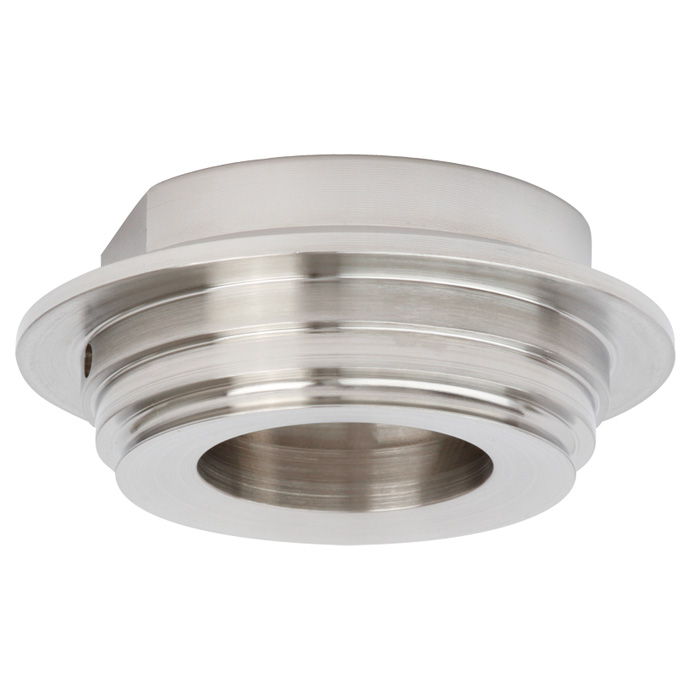

Process adapter
Description
The WIKA process adapter system has been specifically developed to meet the requirements of the food, beverage and pharmaceutical industries. The adapter system consists of the measuring instrument with G1 hygenic connection and matching process adapter.
The flexible, modular system allows connection to a wide range of aseptic process connections (e.g. clamp, threaded, VARIVENT® or NEUMO®). All parts are made of 1.4435 (316L); UNS S31603 stainless steel.
The O-ring for sealing the process (optional) is supplied with a 3.1 material certificate per EN 10204. It is available in either EPDM or FKM and is listed as FDA, USP Class VI, as well as 3-A 18-03.
The WIKA adapter system meets the high requirements of sterile processes.Measuring instrument and process adapter are easily connected and disconnected using a spanner.
Customer benefit
VARIVENT® connection
